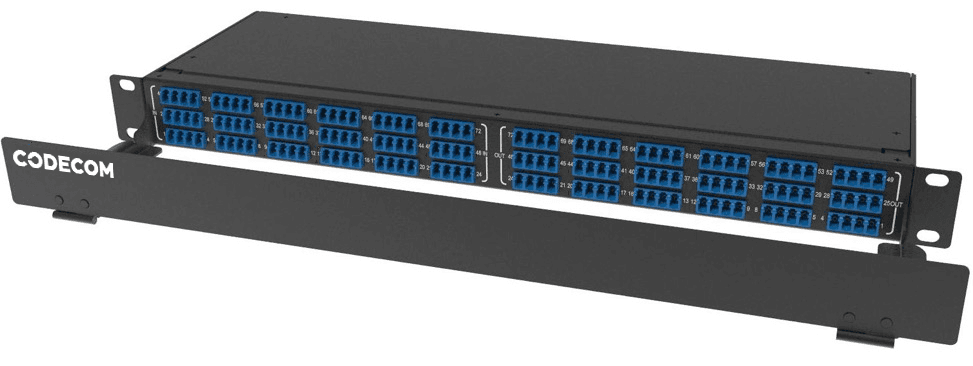

The Codecom 1U HD Cross-Connect Patch Panel is purpose-built for high-end data centre cross-connect and hand-off applications where minimising risk, loss, and rack space are equally critical. The panel is logically divided into two clearly defined sections — data centre (In) on the right and customer (Out) on the left — providing a clean, organised hand-off interface that reduces the risk of mispatching during day-to-day operations and moves, adds, and changes.

Despite supporting up to 144FO in a single rack unit (72 in / 72 out), the chassis is only 142mm deep, making it ideal for space-constrained environments. Factory pre-populated with premium low-loss LC or SC connectors, the panel is ready for rapid deployment straight out of the box. A hinged drop-down front plate provides integrated cable management with adequate space for labelling and fibre protection. LC-LC, SC-SC, and hybrid LC-SC configurations are all available, with 72FO and 144FO options to suit varying port count requirements.

Features & Applications

• Compact 1RU chassis with a short depth of 142mm
• Up to 144FO in LC (72FO in / 72FO out) — 72FO SC-SC and hybrid LC-SC variants also available
• Clearly divided In/Out sections for clean, low-risk cross-connect hand-off
• Factory pre-populated with premium low-loss connectors — ready for rapid deployment
• Hinged drop-down front plate with integrated cable management and labelling provision
• Front access only — fixed chassis, no moving parts
• Premium low-loss LC and SC connectors as standard
• Standard 19″ rack-mountable form factor
• Indoor application (IP20)
• Compliant with TIA/EIA-568-C.3, ISO/IEC 11801, EC-61754-7, EIA/TIA-604-5, and IEC-60793
• Suitable for enterprise networks and data centres
