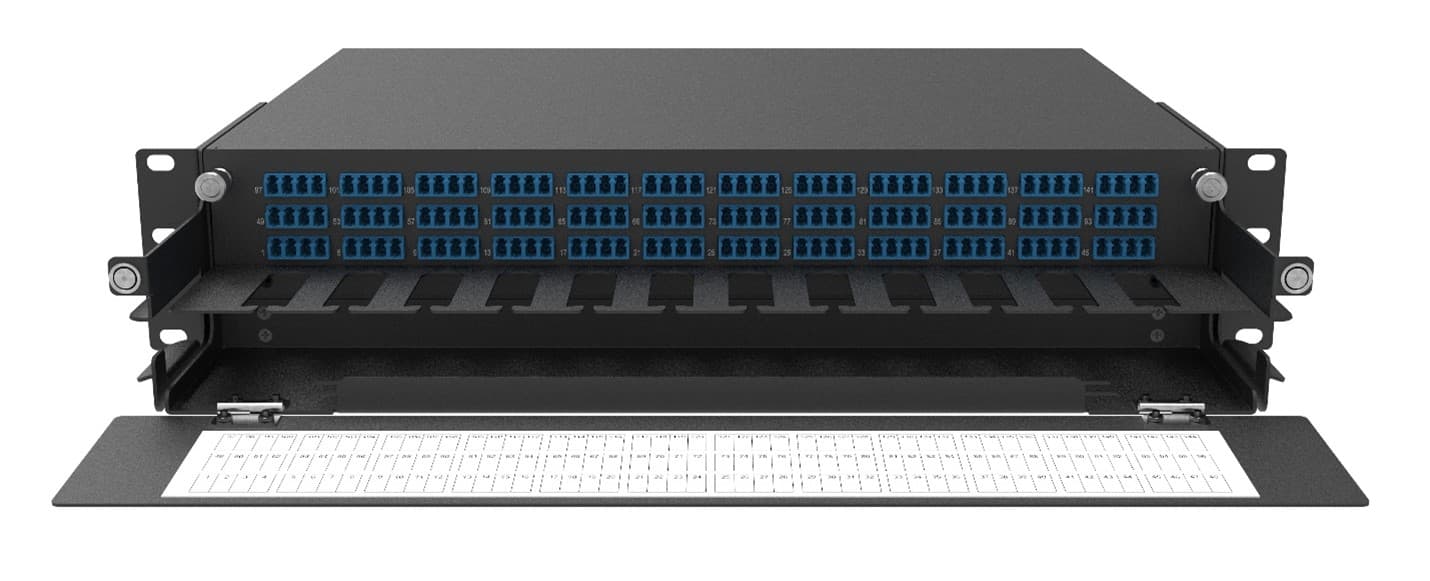

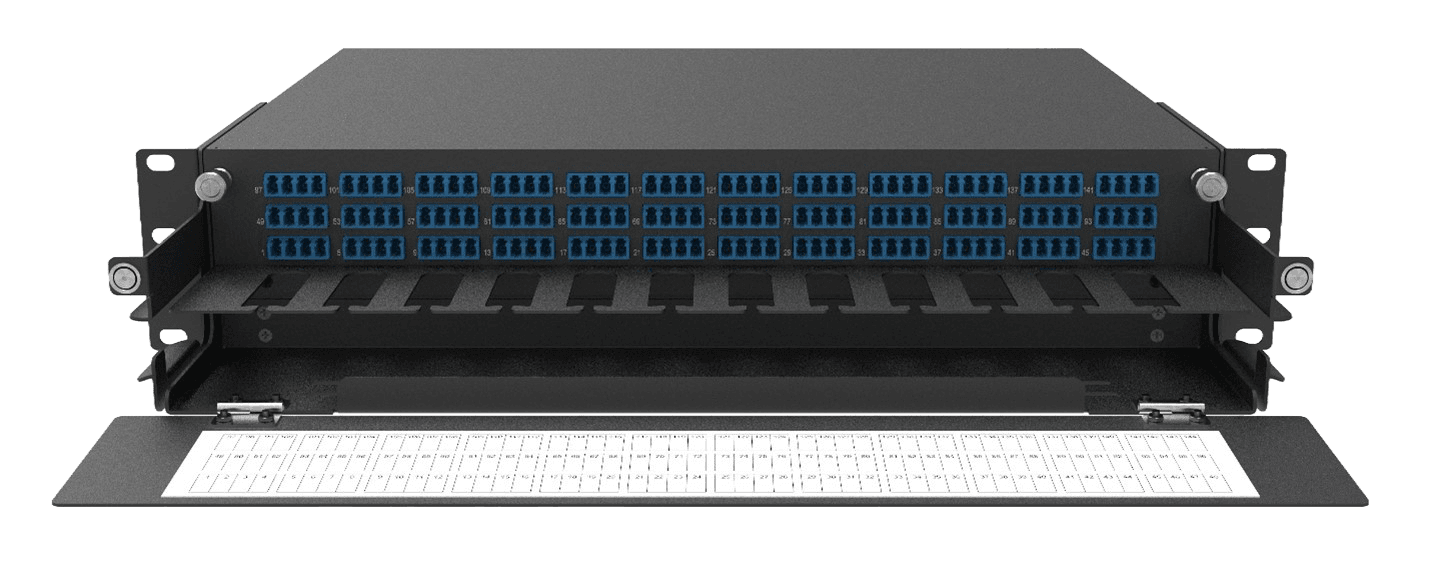

The Codecom Telescopic Slide-Out Splice Panel range delivers high-density fibre splicing in a practical, installer-friendly chassis designed for ease of access and long-term cable management. Built around a smooth telescopic front slide-out rail mechanism with a secure locking mechanism, these panels provide reliable, repeatable access to splice trays without the risk of cable damage during maintenance or future works.

Available in 1RU, 2RU, and 4RU configurations supporting 72F, 144F, and 288F respectively in LC/PC or LC/APC options, the range scales across a wide variety of deployment environments — from data centres and co-location facilities to telecommunications networks, LAN/campus installations, commercial fit-outs, and mining camps. Rear angled cable entries with cable clamps and tie-off points on both left and right sides simplify high core count fibre distribution, while integrated 1RU cable management is included on the 2RU and 4RU variants. All panels are supplied fully loaded with pigtails and splice accessories as standard.

Features and Applications

• Available in 1RU (72F), 2RU (144F), and 4RU (288F) configurations
• LC/PC and LC/APC options across all chassis sizes
• Telescopic front slide-out with secure locking mechanism for smooth, robust access
• Rear angled cable entries with cable clamps and tie-off points — left and right hand side
• Integrated 1RU cable management included on 2RU and 4RU variants
• Internal cable management spools and cable glands included
• Supplied loaded with 6 × 12FO SM 900µm coloured G657A1 pigtails (2m), splice trays, holders, and protectors
• Front and rear access
• Custom port labelling available
• Co-branding available upon request
• RoHS, REACH and SVHC compliant, Materials Conflict compliant
• Suitable for telecommunications networks, data centres, co-location DC, LAN/campus networks, commercial fit-outs, and mining camps
