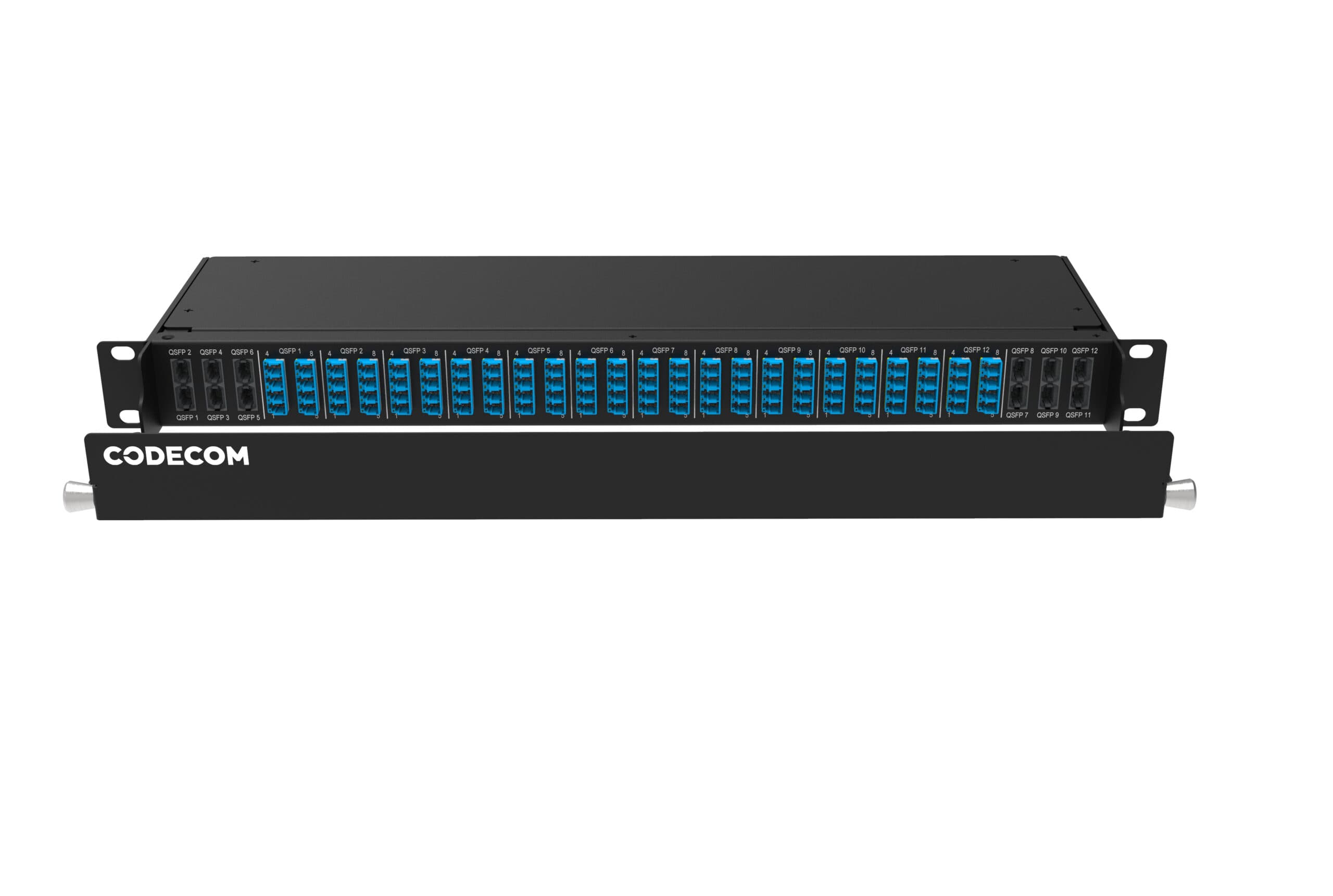

The Codecom Fixed QSFP Breakout Panel delivers high-density, structured fibre connectivity purpose-built for 400G applications and beyond. Housed in a single rack unit, the panel provides 12 QSFP ports each breaking out to 8 fibres via 4 × LC duplex connections, supporting up to 96 fibres per RU in a clean, structured front-access layout.

Designed for modern data centre and enterprise network environments, the fixed configuration ensures reliable and repeatable performance across spine-leaf architectures, top-of-rack switching, and high-speed server connectivity. Clear port labelling, robust cold rolled steel construction, and front-only access simplify both initial installation and ongoing cable management. MPO Elite low-loss connectors are fitted on the trunk side with LC UPC or APC on the breakout side.

Custom configurations are available including alternate port counts, connector types (SC, MPO, MTP), fibre configurations, and custom labelling — contact Codecom to discuss your project requirements.

Features & Applications

• 1RU chassis with 12 × QSFP to LC (8F) breakout ports — up to 96 fibres per RU
• Each QSFP port breaks out to 4 × LC duplex connections (8F)
• MPO Elite low-loss trunk connectors with LC UPC or APC breakout
• Designed for 400G applications and beyond
• Supports spine-leaf architectures, top-of-rack switching, and high-speed server connectivity
• Fixed configuration for reliable, repeatable performance
• Front access for simplified patching and maintenance
• Robust cold rolled steel construction with clear port labelling
• Customisation available — port counts, connector types, fibre configurations, and labelling
• Standard 19″ rack-mountable form factor
• Indoor application (IP20)
• Compliant with TIA-568.3 and IEC 61754-7
