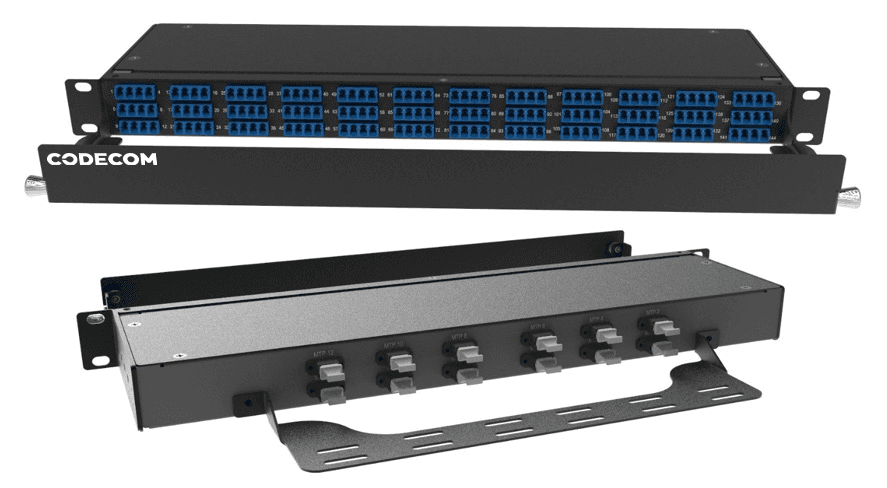

The Codecom 1U MPO-LC Panel is a high-density patching solution engineered for carriers and data centres requiring maximum fibre port density in minimum rack space. With rear-entry MPO Elite connectors and front LC patching across 36 SC-duplex footprint slots, this panel delivers up to 144 fibres in a single rack unit — making it ideal for terminating high core count pre-terminated cables directly in the rack without compromise on accessibility or performance.

The fixed chassis design keeps things simple and reliable, with a removable hinged front door for clean cable management and a rear support bar to keep MPO trunks organised. Available in 72F, 96F, and 144F configurations, the panel scales to your exact port requirements while maintaining a consistent 1RU footprint. Elite MPO and premium LC connectors are fitted as standard across all variants.



Features & Applications

• Up to 144FO in LC in a single 1RU chassis
• Available in three configurations: 72F (6×MPO), 96F (8×MPO), and 144F (12×MPO)
• Rear MPO Elite connectors with front LC patching — ideal for high core count pre-terminated trunk termination
• Elite MPO and premium LC connectors fitted as standard
• 36 slots on SC duplex footprint
• Removable hinged front door with integrated cable management
• Rear support bar for MPO trunk management
• Standard 19″ rack-mountable form factor
• Available in single-mode (SM) and multimode (MM) options
• RoHS, REACH and SVHC compliant
• Compliant with IEC and TIA/EIA standards
• Suitable for data centre, carrier, enterprise network, and telecommunications central office applications
• Indoor application
