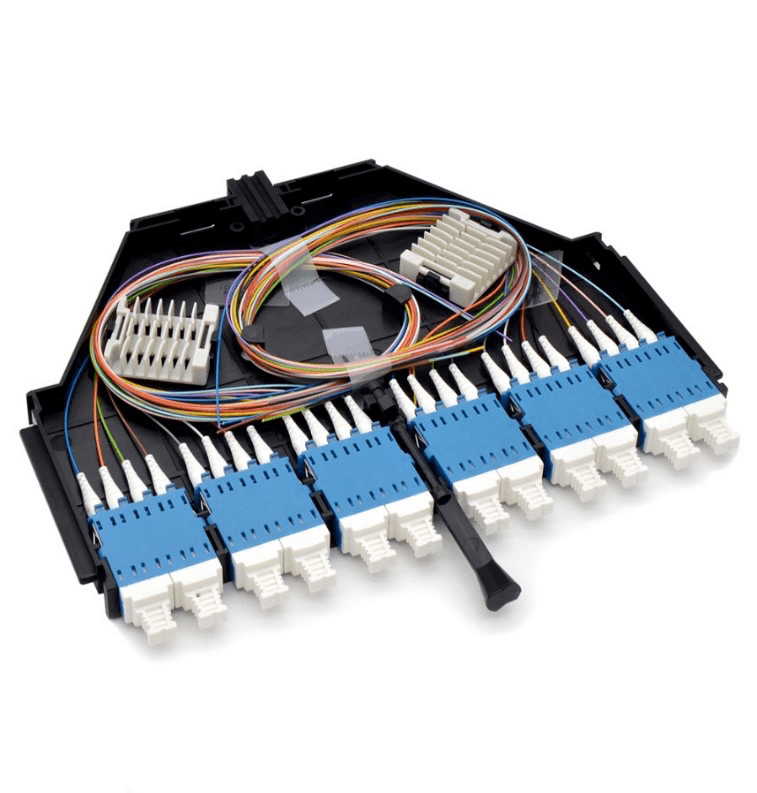

Codecom’s CXD QSFP breakout module enables direct integration of 40G and 100G QSFP+ and QSFP28 transceiver connections into the CXD patching environment. Each module features two or three independent MPO inputs, each breaking out to 8 individual LC fibre connections, delivering 16 fibres per module within the same 1RU chassis footprint. This eliminates the need for external breakout cables while keeping your structured cabling consistent and manageable.

Features & Applications

• Up to 3x MPO inputs per module with 3x 8F LC outputs
• 16 fibre connections per module in total
• Designed for 40G and 100G QSFP+ and QSFP28 transceiver environments
• Eliminates the need for external MPO breakout cables
• Front-access design — installs directly into the CCX chassis
• Can be combined with MPO conversion, adaptor plate and splice modules within the same chassis
• 40G and 100G datacentre switch and server connectivity
• QSFP+ and QSFP28 structured cabling breakout
• Top-of-rack and end-of-row switching environments
• High-density datacentre fibre distribution
