The Codecom CMD MPO Cassette Module is the core building block of the CMD modular chassis system, providing structured MPO trunk breakout to LC or SC patching ports within a single, front-access chassis slot. Each cassette accepts one MPO Elite trunk at the rear and breaks out to 24 LC or 12 SC connections at the front — delivering low-loss, polarity-managed fanout in a compact, tool-free format.

Available in singlemode and multimode OM3/4 across LC/UPC, LC/APC, and SC/UPC and SC/APC connector types, with Polarity A and C options as standard, the cassette range covers the full breadth of data centre and enterprise network patching requirements. MPO Elite connectors are fitted on the trunk side as standard across all variants, ensuring consistently low insertion loss and high return loss performance at every connection point.

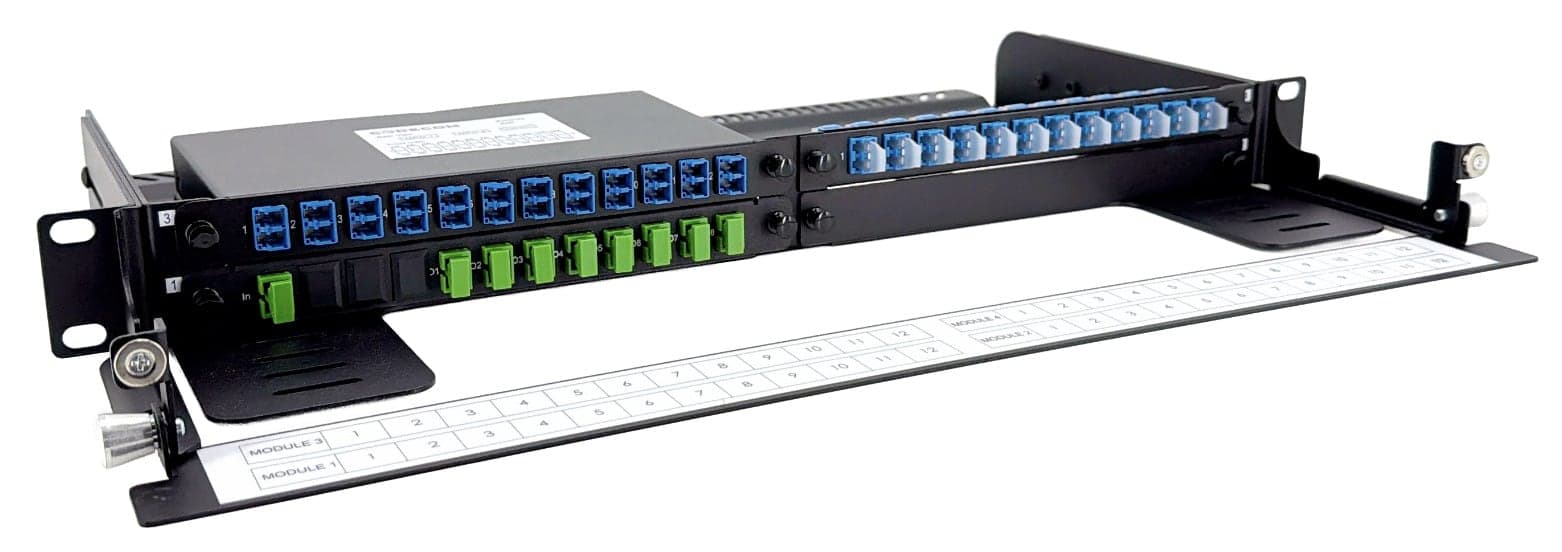

Each cassette slots directly into any CMD chassis — 1RU fixed frame, telescopic sliding, 3RU enclosed, 4RU open panel, or angled — and can be mixed freely with splice modules, adapter plates, QSFP breakout modules, PLC splitters, and copper keystone modules in the same chassis. Custom labelling is available to match your active device layout exactly.

Features and Applications

• MPO Elite rear trunk port breaks out to 24× LC or 12× SC front patching ports per cassette
• Singlemode G.657.A1 and multimode 50/125 OM3/4 options
• LC/UPC, LC/APC, SC/UPC, and SC/APC connector types
• Polarity A and C available across all variants
• MPO Elite connectors fitted as standard for low insertion loss and high return loss performance
• Freely mixable with all other CMD module types in the same chassis
• Compatible with indoor and outdoor pre-terminated cables and MTP trunks
• Various polarity methods available — contact sales for more information
• Custom port labelling available to match active device layouts
• RoHS, REACH and SVHC compliant
• Indoor application (IP20)
• Suitable for data centre and enterprise network applications
