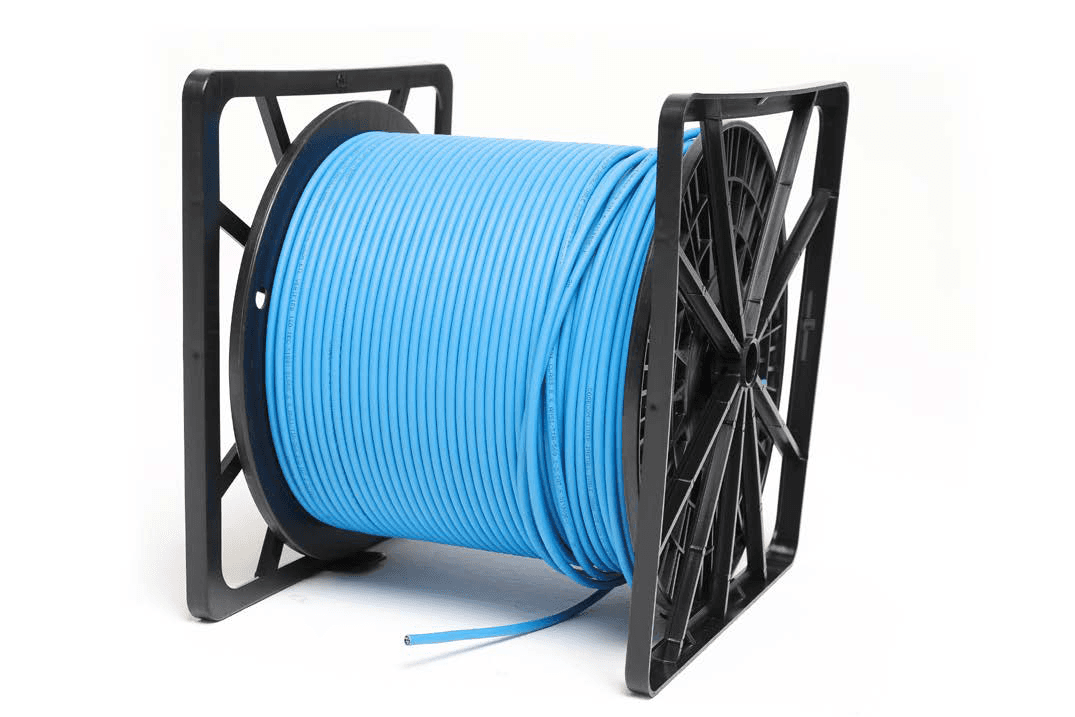

The Codecom CAT6 U/UTP 23AWG Solid Cable delivers reliable Gigabit Ethernet performance for everyday structured cabling installations. Constructed with solid bare copper conductors and a PE separator to minimise crosstalk between pairs, this cable meets the full ANSI/TIA-568.2-D CAT6 and ISO/IEC 11801 Class E transmission requirements. Available with PVC or LSZH jacket options, it suits a wide range of commercial and light industrial environments. Supplied on a convenient 305m pull-out drum, it’s a practical and cost-effective backbone for offices, schools, warehouses, and multi-tenancy buildings.

Features & Applications

• U/UTP unshielded construction with PE separator for effective pair isolation and crosstalk control without the need for additional earthing infrastructure
• Solid bare copper 23AWG conductors with HDPE insulation for consistent electrical performance across all four pairs
• LSZH jacket option available for installations requiring low smoke and zero halogen compliance
• Supports data transfer speeds up to 1000 Mbps, suitable for 1000BASE-T Gigabit Ethernet applications
• Supports 4PPoE at 100W (IEEE 802.3bt Type 4) for powering PoE devices including IP phones, cameras, and wireless access points
• Compliant with ANSI/TIA-568.2-D CAT6 and ISO/IEC 11801 Class E, with ETL verification
• Suitable for horizontal and backbone runs in offices, education facilities, healthcare, retail, and light industrial environments
• Compatible with Codecom CAT6 keystone jacks and patch panels for a fully certified end-to-end copper cabling system
