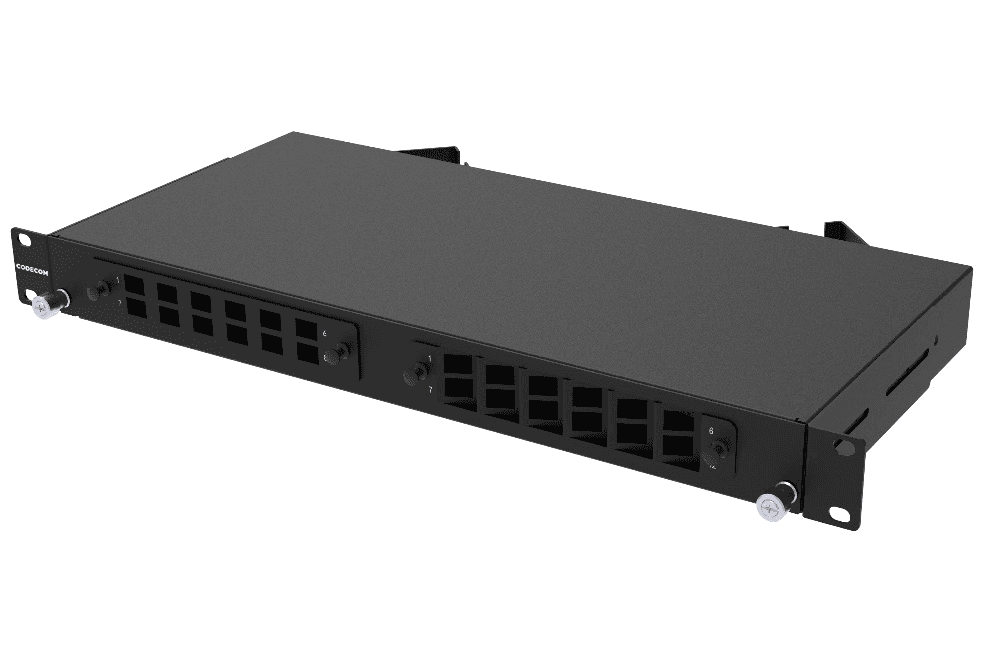

The Codecom Sliding Patch Panel with Winged Back is a versatile, installer-friendly splice panel designed to make fibre cable splicing straightforward and reliable. Built around a telescopic rail sliding system with a secure locking mechanism, the panel provides smooth, controlled access to splice trays without putting stress on cables or connections during maintenance.

Available in 1RU, 2RU, and 3RU chassis sizes supporting 24F through to 144F, the range scales across a wide variety of deployment environments. The modular adaptor plate system supports LC, LC/APC, SC, SC/APC, ST, FC, and MTRJ connector types, while the rear-mounted angled cable entry with unique clamping features ensures incoming fibres are properly secured and routed for both easy initial installation and long-term management. Angled and straight face plate options provide additional flexibility in cable routing direction.

All panels are supplied fully loaded with pigtails, angled adaptor plates, splice trays, splice spools, and cable glands as standard — ready for fusion splicing on arrival.

Features and Applications

• Available in 1RU (up to 48F), 2RU (up to 96F), and 3RU (up to 144F) configurations
• Fibre options from 24F to 144F across LC, LC/APC, SC, and SC/APC connector types
• Modular adaptor plates supporting LC, SC, ST, FC, and MTRJ
• Telescopic rail sliding system with secure locking mechanism
• Rear-mounted angled cable entry with cable clamping and strain relief
• Angled and straight face plate options for flexible fibre routing
• Winged back design for easy cable management and technician access
• Supplied loaded with pigtails, angled adaptor plates, splice trays, spools, and cable gland
• Standard 19″ rack-mountable form factor
• Indoor application (IP20)
• Suitable for data centres, telecommunications core cable splicing, in-building applications
